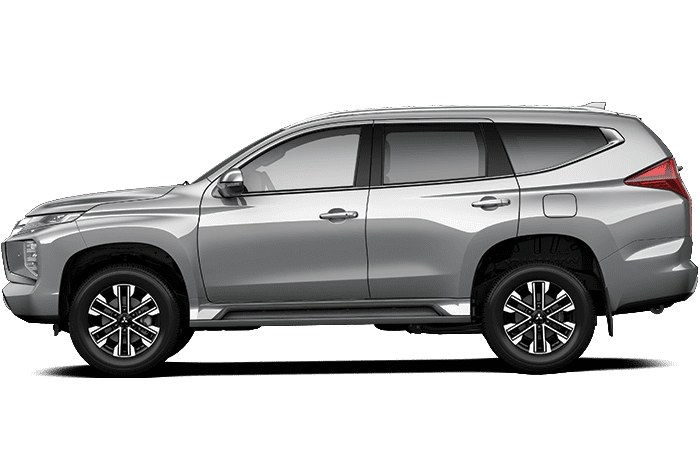

Pajero Sports
Elevate Your Journey
Adventure calls from the well-appointed cockpit, which surrounds you with solid craftsmanship, supportive comfort, intelligent features and a wide open view. From refined meters to sophisticated floor console, every feature is fine-tuned to enhance driving pleasure and keep you in confident control.
ABOUT
Solid Handling
Handling is stable and accurate on and off road, in all kinds of weather and driving conditions, thanks to selectable 2WD and 4WD modes, an OFF ROAD MODE that enhances traction on demanding surfaces, intelligent assistance in challenging conditions, an advanced suspension and outstanding all-around clearance.
Super Select 4WD
Using the drive mode selector dial, you can switch between 2WD (2H) and 4WD (4H, 4HLc) with shift-on-the-fly convenience at up to 100km/h. When the going gets rough, lock the center differential by entering the 4HLc setting for rugged terrain or the 4LLc setting for inclines, mud, sand and snow.
EXTERIOR
Tastefully Robust
Discover the new look of 4WD luxury. Boldly sculpted and stylishly accented, the assertive aerodynamic body delivers solid refinement down to the last detail — from Dynamic Shield front design concept to vibrant rear lamps. So you can seize every adventurous opportunity with style.
The new face of Mitsubishi
The Dynamic Shield Design concept powerfully expresses the notion of high performance promise and a sense of protection – for botht the passengers and passerby. Dynamic Shield Design has evolved over generations of Mitsubishi vehicles and the current iteration is the embodiment of form following funtion.
Alloy Wheels
18 inch Alloy Wheels offer proper ground clearance in every road.

INTERIOR
Premium Comfort
Adventure calls from the well-appointed cockpit, which surrounds you with solid craftsmanship, supportive comfort, intelligent features and a wide open view. From refined meters to sophisticated floor console, every feature is fine-tuned to enhance driving pleasure and keep you in confident control.
Flexible 7- Seater
To provide as much flexible space as possible, the 2nd-row can have the seatbacks folded down, and then the seats themselves folded up and out of the way. You can also fold down just one part of the 60:40-split 2nd-row for carrying extra long cargo..
FEATURES
Safety First Approach
Accidents happen. Mitsubishi knows that sometimes the road throws an unexpected surprise in your path, so Pajero Sports is outfitted with an array of advanced active and passive safety technologies. Enjoy your drive with the peace of mind of knowing that you and your passengers are safe and secure.
RISE Body
Collision safety performance is significantly enhanced by Mitsubishi Motors’ RISE (Reinforced Impact Safety Evolution) body, which efficiently absorbs energy and maintains high cabin integrity in the event of a collision.
Anti-lock Braking System
When the road throws you an unexpected curve, ABS ensures that you’ll be ready. The 4-sensor, 4-channel system is matched to each SS4 II mode to ensure skid-free braking regardless of surface conditions.
Electronic Brake-force Distribution
EBD modulates each braking channel independently, providing additional force to the rear wheels when the vehicle is carrying passengers or cargo. This ensures you are able to come to a stop quickly and safely, regardless of load or road conditions.
Hill Start Assist
When starting on a steep slope, HSA helps prevent you from rolling backwards while you release the brake by maintaining the raking force for up to two seconds until the accelerator is applied.
DVD Display and Audio
Enjoy movies on the high-res 6.1-inch WVGA display and music from your audio player via USB, HDMI or AUX port. Or display views from the rear view camera.
Active Stability and Traction Control
Active Stability & Traction Control independently regulates braking force to the wheels during cornering to help maintain excellent vehicle stability when needed. It also optimizes traction to prevent loss of torque whenever wheel spin is detected by controlling engine output and applying brake force to the spinning wheels
Minimum Turning Radius
The turning radius (5.6 M) is surprisingly small for a vehicle of this size, making it especially easy to park and maneuver.
TECHNICAL SPECIFICATIONS
Model Code: |
|
| KS3WGYMFR | KS3WGNMFR |
|
|
| ||
|
|
|
|
|
DIMENSIONS & WEIGHTS |
|
| 4825 | 4825 |
Overall Length |
| mm | ||
Overall Width |
| mm | 1815 | 1815 |
Overall Height | Without Roof Rail | mm | 1800 | 1800 |
| With Roof Rail | mm | 1805 | 1805 |
| With Antenna | mm | 1835 | 1835 |
Wheelbase |
| mm | 2800 | 2800 |
Track | Front | mm | 1520 | 1520 |
| Rear | mm | 1515 | 1515 |
Min. Ground Clearance |
| mm | 218 | 218 |
Curb Weight |
| kg | 2015 | 2005 |
Gross Vehicle Weight (GVW) | kg | 2710 | 2710 | |
Pay Load |
| kg | 695 | 705 |
Seating Capacity |
| Persons | 7 | 7 |
PERFORMANCE |
|
|
|
|
Max. Speed |
| km/h | 166 | 168 |
Climbing Ability |
| tan ∅ | 1 | 1 |
Min. Turning Radius |
| m | 5.6 | 5.6 |
Approach Angle |
| Degree | 30 | 30 |
Departure Angle |
| Degree | 24.6 | 24.6 |
ENGINE |
|
|
|
|
Type |
|
| 4D56 Direct Injection Diesel Common Rail Intercooled Turbocharged | |
Total Displacement |
| cc | 2477 | 2477 |
Bore X Stroke |
| mm | 91.1 x 95.0 | 91.1 x 95.0 |
Compression Ratio |
|
| 17.0 | 17.0 |
Max. Output (EEC Net) |
| kW /rpm | 100/4000 | 100/4000 |
Max. Torque (EEC Net) |
| N-m /rpm | 324 /2000 | 324 /2000 |
|
|
|
|
|
ELECTRICAL SYSTEM |
|
|
|
|
Battery |
|
| 80D26L | 80D26L |
Alternator |
|
| 90 A | 90 A |
FUEL SYSTEM |
|
|
|
|
Fuel Supply Equipment |
|
| Electric Fuel Injection (Common Rail) | |
Fuel Type |
|
|
| Diesel |
Fuel Tank Capacity |
| Liter |
| 68 |
TRANSMISSION |
|
|
|
|
Type |
|
| 5A/T (V5AWF) | 5M/T (V5MB1) |
Clutch | 1st |
| Torque converter | Hydraulic type |
Gear Ratio |
| 3.52 | 4.313 | |
| 2nd |
| 2.042 | 2.330 |
| 3rd |
| 1.400 | 1.436 |
| 4th |
| 1.000 | 1000 |
| 5th |
| 0.716 | 0.788 |
| 6th |
| - | - |
| Reverse |
| 3.224 | 4.220 |
Transfer Gear Ratio | High |
| 1.000 | 1.000 |
Final Gear Ratio | Low |
| 2.566 | 1.900 |
|
| 3.917 | 4.090 | |
STEERING |
|
|
|
|
Type |
|
| Rack & Pinion with Power Steering | |
SUSPENSION |
|
|
|
|
Front |
|
| Independent Double Wishbone, Coil Spring with Stabilizer Bar | |
Rear |
|
| 3-Link Coil Springs with Stabilizer Bar | |
BRAKES |
|
|
|
|
System |
|
| Vacuum Brake Booster | |
Front |
|
| Ventilated Disc Brake (1POT Diameter 294 mm) | |
Rear |
|
|
| Drum Brake |
TIRES |
|
|
|
|
Wheels |
|
| 16 x 7.0 j Alloy Wheels | |
Size |
|
|
| 265/70R16 |

Experience the new Pajero Sports
